160 Mm Working Width Wood Moulding Machine /4 side moulder/profile

Brand Name : V-HOLD

Model Number : VH-M616

Certification : ISO9001:2015 , CE certificate

Place of Origin : CHINA

MOQ : One Unit

Delivery Time : 30-45 days after deposit received

Packaging Details : Standard export package or packed as client’s requirement

Price : 108000

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100units/year

Machine Type : 4 Side Moulder

Body Structure : Cast Iron

Working Width : 160 mm

Voltage : 380 / Customize

Condition : New

Contact Now

160 Mm Working Width Wood Moulding Machine

Medium Type 4 Side Moulder VH-M616

Support optional short wood roller to make sure the smooth convey,The front and back pressing plate can be


adjusted respectively. Even the wood thickness changes frequently,youu can stabilize it under worktable. Every


accessory quality is guaranteedwith Exquisite processing equipment and elaborate technology.

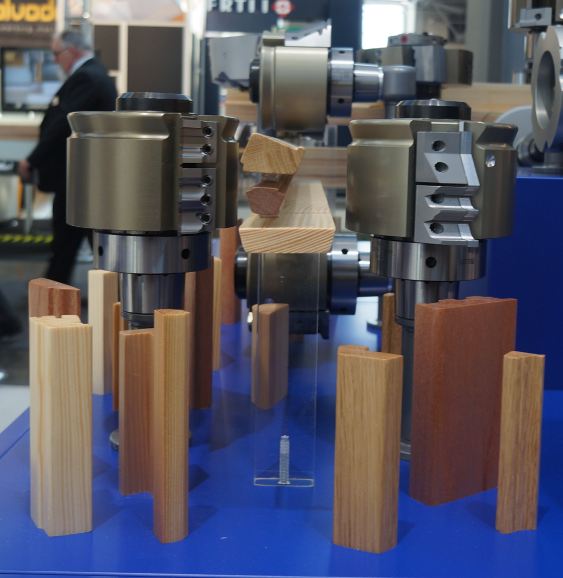

There are some example of moulding below:

Solid wood picture frameSolid wood line

VH-M616 Product Details

1. The lathe bed is of integral structure , being made of casting with damping performance and the rigidity of the


lathe bed is better. Laying a good foundation for the smooth running of the cutter shaft and feeding system.


2. Inverter feeding speed range from 6 – 36m/min


3. Each shaft have individual Motor , which can ensure maximum cutting power


4. The adjustment of spindle is in front of the machine for convenience


5. Hard chromed worktable good provide wear resistance


6. The under drive roller is equipped for advancing feeding performance.


7. Manual lubrication to the work table and carriage , easy to centralized control


8. Configure well-known brand electrical components, strong stability


9. Pneumatic pressure loading to top feed rollers separately adjustable, for easy of feeding stock with variation


in thickness;


10. Equipped the short material auxiliary device for improving the smoothness of feeding short piece material.


11. Other alternative configurations: The normal plane can change to slotted plane for special requirement of the


customers; Increaseing the power of motor; Changing voltage of the machine


ModelVH-M616
SpecificationWorking width25-160
Working thickness8-120
Working table length1500
Feeding speed6-36
Main spindle diameter (mm)Φ 40
Main spindle revolution(r/min)6500
Air pressure (Mpa)0.6
Motor power(KW)1st LowerShaft4kw/5.5HP
Right vertical spindle4kw/5.5HP
Left vertical spindle4kw/5.5HP
1st UpperShaft5.5kw/7.5HP
2nd UpperShaft4kw/5.5HP
2nd Lower Shaft4kw/5.5HP
Feeding beam lifting0.55kw/0.75HP
Feeding motor3kw/4HP
Total power29.05kw/39.5HP
Cutter diameter1st Lower ShaftΦ 125
Right Vertical spindleΦ 125-Φ 160
Left vertical spindleΦ 125-Φ 160
1st Upper ShaftΦ 125-Φ 160
2nd Upper ShaftΦ 125-Φ 160
2nd Lower ShaftΦ 125-Φ 180
RemarkFeeding wheel diameter (mm)

Φ140

Dust outlet diameter(mm)Φ140

Note: Any variation to the specification above mentioned will not be further notified since the product specification


and designs keeps on changing.
