VH - M521 5 Head Moulder For Window Frame Processing

Name: VH M521 5 Head Moulder For Window Frame Processing
Brand: V-HOLD
Price: 1 USD

Brand Name : V-HOLD

Model Number : VH-M521

Certification : ISO9001:2015 , CE certificate

Place of Origin : CHINA

MOQ : One Unit

Delivery Time : 30-45 days after deposit received

Packaging Details : Standard export package or packed as client’s requirement

Product Type : Four Side Moulder

Body Structure of Machine : Cast Iron

Number of spindle : 5 spindle

Feed Speed : 36 m/min

Warranty : one year

Condition : New

Contact Now

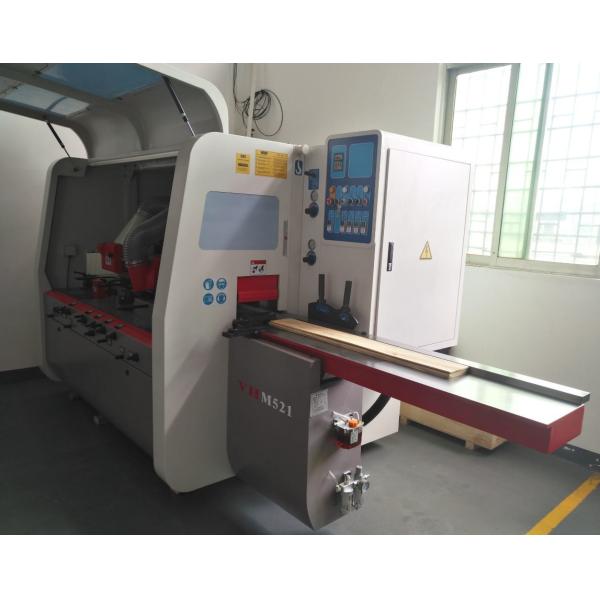

VH - M521 5 Head Moulder For Window Frame Processing

Four Side Moulder VH-M521 for window frame

VH - M521 5 Head Moulder For Window Frame Processing

4 Side Moulders are used for processing products in solid wood, panels such as MDF , plastics or similar materials . Therefore , 4 Side Moulders are one of the most important production facilities , widely used in furniture manufacturer . This four side moulder VH-M521 is used for processing Medium cutting capacity strip , MDF strip , HDF strip , floor , doors , Solid wood furniture and Square boards.

VH-M521 Outstanding Character

	Heavy-duty cutting gear case The feeding roller transmits through cardan joints and gear case , which guarantees strong power . Smooth feeding , powerful transmission and precise feeding .
	Every cutter shaft is assembled and tested under air-conditioned environment and is supported by SKF bearing . The stable- worked shaft guaratees the surface roughness of finished products .
	Quick liftable short material device This mechanism enables the smooth feeding for short woods . The auxiliary feeding rooler has the function of transmission , which makes the feeding more briskly . With liftable feeding roller , you can change and adjust the shaft easily .
	The back lower shaft table can be adjusted freely , so you can change the knives easily .

Parameters of VH-M521

Model		VH-M521
Specification	Working width	25-210
	Working thickness	8-140
	Working table length	1970
	Feeding speed	6-36
	Main spindle diameter (mm)	Φ 40
	Main spindle revolution(r/min)	6500
	Air pressure (Mpa)	0.6
Motor power(KW)	1st LowerShaft	5.5kw/7.5HP
	Right vertical spindle	5.5kw/7.5HP
	Left vertical spindle	5.5kw/7.5HP
	1st UpperShaft	7.5kw/10HP
	2nd Lower Shaft	5.5kw/7.5HP
	Feeding beam lifting	0.55kw/0.75HP
	Feeding motor	4kw/5.5HP
	Total power	34.05kw/46.26HP
Cutter diameter	1st Lower Shaft	Φ 125
	Right Vertical spindle	Φ 125-Φ 180
	Left vertical spindle	Φ 125-Φ 180
	1st Upper Shaft	Φ 125-Φ 180
	2nd Lower Shaft	Φ 125-Φ 200
Remark	Feeding wheel diameter (mm)	Φ140
	Dust outlet diameter(mm)	Φ140
