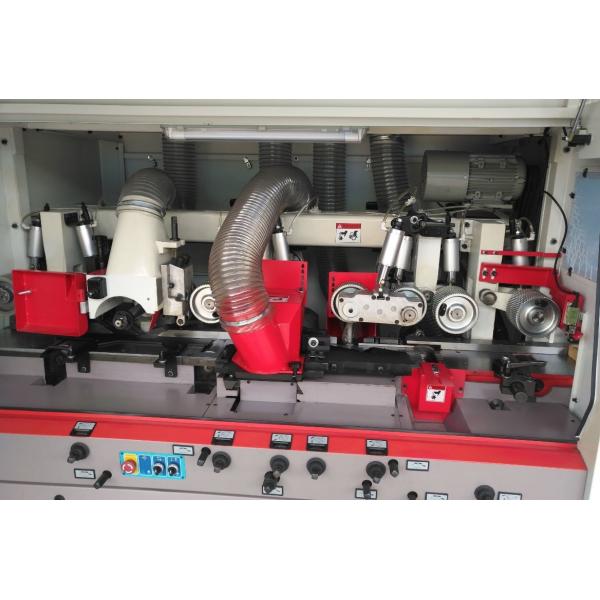

Solid Wood Floor Click Joint Multifunction Woodworking Machine Inverter Feeding
Exquiste production technology with orderly inside.

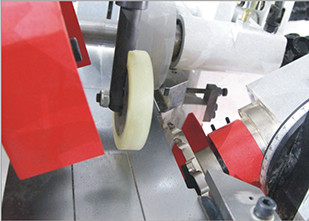

Complex tenon of Solid wood click joint can be processed with these rotatable 2 main spindles
Solid Wood Floor Click Joint Wood Planer Moulder Machine L4300 * W1780 * H1940mm
Solid Wood Floor Click Joint
M721 Solid wood Floor Click Joint machine combine nearly all the working procedure pf solid wood .
Several process can be done by only one machine .
| Model | | VH-M721 |
| Specification | Working width | 25-210 |
| | Working thickness | 8-140 |
| | Working table length | 1970 |
| | Feeding speed | 6-36 |
| | Main spindle diameter (mm) | Φ 40 |
| | Main spindle revolution(r/min) | 6500 |
| | Air pressure (Mpa) | 0.6 |
| Motor power(KW) | 1st LowerShaft | 5.5kw/7.5HP |
| | Right vertical spindle | 5.5kw/7.5HP |
| | Left vertical spindle | 5.5kw/7.5HP |
| | 1st UpperShaft | 7.5kw/10HP |
| | 2nd Lower Shaft | 5.5kw/7.5HP |
| | Feeding beam lifting | 0.75kw/1HP |
| | Feeding motor | 5.5kw/7.5HP |
| | Universal shaft | 2.2kw |
| | Total power | 40.15kw/54.5HP |
| Cutter diameter | 1st Lower Shaft | Φ 125 |
| | Right Vertical spindle | Φ 125-Φ 180 |
| | Left vertical spindle | Φ 125-Φ 180 |
| | 1st Upper Shaft | Φ 125-Φ 180 |
| | 2nd Lower Shaft | Φ 125-Φ 200 |
| | Card buckle shaft | Φ140 - Φ180 |
| Remark | Feeding wheel diameter (mm) | Φ140 |
| | Dust outlet diameter(mm) | Φ140 |
| | Overall dimensions(mm) | L4300*W1780*H1940 |
| | Suttle(kg) | 3500 |
. The raw materials we choose are well-known brands, and the quality isOur position has
always been the high-end market, now the production costs continue to increase, brain drain,
enterprise price competition alone is not a long-term plan, to win by quality, is our top priority,
because today may win a customer because the price is low, but tomorrow may have a lower
price competitors, this is A vicious circle, creating a brand that relies more on product quality
guaranteed. In addition, our products are absolutely environmental protection clearance,
products are through the well-known testing institutions.
Excellent service Full service
Pre-sale service :Before sales,professionals will introduce the product's performance to
customers. Nevertheless, they will recommend the most satisfied product of our company to
customers according to the product that customers produce.
In sale service :During sales ,salesmen will be prepared to keep in smooth touch with company
production line according to customers' demand in order to deliver the goods on time .
After-sales service : After sales ,professional after-sale service staff will follow up ,find out ,and
solve possible problems when customers use our products.
