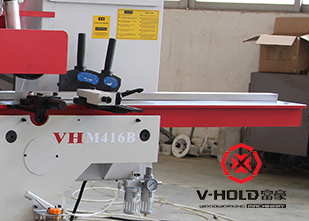

High Efficient Four Side Planer Woodworking Machine 4 Cutter Shafts Stable Performance
The Medium Duty 4 Side Moulder VH-M416
| VH-M416B has lower price compared with VH-M416 moulder due to no cover design, but VH-M416B has same features suitable for some small plants with limited budget for production equipment. Four Side Moulder VH-M416B also has 4 spindles, which is applicable for process Soft wood strip, Medium cutting capacity strip, MDF strip, HDF strip, Glued laminated timber and Square boards. Appliable for some simple furnitures production such as Children's furniture and Nordic Style Furniture ect, which does not need complex wood moulding. |
VH-M416B Moulder features
 | Body structure of VH-M416B is made of casting Iron, it has better wear resistance and shock absorption. It Lay a good foundation for the smooth operation of the cutter shaft and feeding system. |
| There is an active feeding wheel (under red cover for safety) in front of the machine worktable, which make feeding easier and smooth. |
 | Feeding Frequency inverter Digital display, very easy to operate, save energy and also can reduce wearing because of mechanical transmission. |
 | All shaft adjustment are carried out in front of the machine. The operation are more convenient and comfortable. |
 | Our moulders use Hard chromed worktable to minimize abrasion, and also the worktable operational life span is enhanced. |
| Model | | VH-M416B |
| Specification | Working width | 25-160 |
| | Working thickness | 8-120 |
| | Working table length | 1500 |
| | Feeding speed | 6-36 |
| | Main spindle diameter (mm) | Φ 40 |
| | Main spindle revolution(r/min) | 6500 |
| | Air pressure (Mpa) | 0.6 |
| Motor power(KW) | 1st LowerShaft | 4kw/5.5HP |
| | Right vertical spindle | 4kw/5.5HP |
| | Left vertical spindle | 4kw/5.5HP |
| | 1st UpperShaft | 5.5kw/7.5HP |
| | Feeding beam lifting | 0.55kw/0.75HP |
| | Feeding motor | 3kw/4HP |
| | Total power | 21.05kw/28.6HP |
| Cutter diameter | 1st Lower Shaft | Φ 125 |
| | Right Vertical spindle | Φ 125-Φ 160 |
| | Left vertical spindle | Φ 125-Φ 160 |
| | 1st Upper Shaft | Φ 125-Φ 160 |
| Remark | Feeding wheel diameter (mm) | Φ140 |
| | Dust outlet diameter(mm) | Φ140 |
Situated in Lunjiao town ,Shunde district of Foshan city, the biggest woodworking machinery production base as
well as "the Chinese leading woodworking machinery town",V-HOLE woodworking machinery macufacture Co., Ltd
is a large well -known company integrated woodworking machinery research, processing ,marketing as well as
application service .
Founded in 1996,V-HOLD commits itself to provide the most secure ,reliable,efficient ,energy-saving ,economical
production equipment for the customers around the world .Nowadays,most of the products including 4 side
moulder ,Double side planner, Single rip saw, Multiple rip sawwith double side planner, and Automotive floor
production line have passed ISO9001:2000 quality system certification ,German TUV safety certification and
European Union CE certification and V-HOLD has achieved the title of "Famous Brand of Guangdong province".
