Customized Four Side Moulder Woodworking Machine For Door And Frame Processing

Product Categories
V-Hold Woodworking Machinery Co., Ltd.
Contact Now

Customized Four Side Moulder Woodworking Machine For Door And Frame Processing

  • 1
  • 2
  • 3

Brand Name : V-HOLD

Model Number : VH-M823

Certification : ISO9001:2015 , CE certificate

Place of Origin : CHINA

MOQ : One Unit

Price : 220800

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100units/year

Delivery Time : 30-45 days after deposit received

Packaging Details : Standard export package or packed as client’s requirement

Machine Type : 4 side Moulder

Voltage : 380V / Customized

Feeding Speed : Up to 36 m/min

Working thickness : 8-160 mm

Warranty : 12 months

working width : 25-230mm

Contact Now

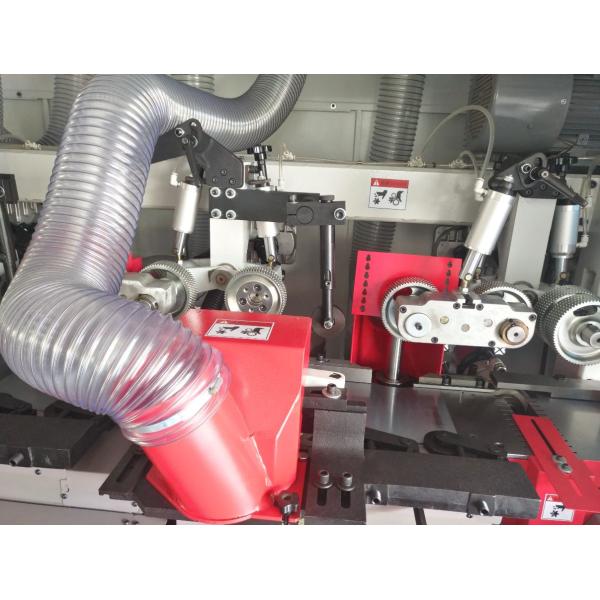

Customized Four Side Moulder Woodworking Machine For Door And Frame Processing
Two left vertical spindle and vertical right spindle

Customized Four Side Moulder Woodworking Machine For Door And Frame Processing

Model

 VH-M823L
Specification Working width 25-230
Working thickness 8-160
Working table length 1970
Feeding speed 6-36
Main spindle diameter (mm) Φ 40
Main spindle revolution (r/min) 6500
Air pressure (Mpa) 0.6
Motor power 1st Lower Shaft 7.5kw/10HP
1st Right vertical spindle 7.5kw/10HP
1st Left vertical spindle 7.5kw/10HP
2st Right vertical spindle 7.5kw/10HP
2st Left vertical spindle 7.5kw/10HP
1st Upper Shaft 11kw/15HP
2nd Upper Shaft 7.5kw/10HP
2nd Lower Shaft 7.5kw/10HP
Feeding beam lifting 1.1kw/1.5HP
Feeding motor 7.5kw/10HP
Total power 72.1kw/98HP
Cutter diameter 1st Lower Shaft Φ 125
1st Right Vertical spindle Φ 125-Φ 180
1st Left vertical spindle Φ 125-Φ 180
2nd Right Vertical spindle Φ 125-Φ 180
2nd Left vertical spindle Φ 125-Φ 180
1st Upper Shaft Φ 125-Φ 180
2nd Upper Shaft Φ 125-Φ 180
2nd Lower Shaft Φ 125-Φ 200
Remark Feeding wheel diameter (mm) Φ140
Dust outlet diameter (mm) Φ140

The Aggravated Type high precision :Applicable to the woodware which both sides need

large cutting .For American classical door and frame processing .

Professional solution for heavy-duty four-side cutting operation of the wooden panel in the

doors and windows factory,solid furniture plant,finger jointing board factory, decorative wood

moulding plant.

Customized Four Side Moulder Woodworking Machine For Door And Frame ProcessingCustomized Four Side Moulder Woodworking Machine For Door And Frame Processing

Honjesty V-HOLD

Honest is the standard to be upright human Honesty is the basic of establishing an enterprise

Being honesty ,V-hold improved himself with durative condition Being honesty ,V-hold is in processing of

resplendence at present Being honest forever and aspire after infinitude is the invariable idea of V-hold

people .

Honesty V-HOLD

Honest is the standard to be a upright human. Honesty is the basic of establishing an enterprise

Being honesty ,V-hold improved himself woth durative condition.

Being honesty ,V-hold is in processing of resplendence at present

Being honest forever and aspire after infinitude is the invariable idea of V-hold people.

V-HOLD

In the past three years ,it has accumulated manufacturing technology of woodworking machinery.

In the present three years ,it has established quality standard in woodworking machinery.

In the coming three years ,it will adopt modern conception in manufacturing technology of woodworking machinery

To upgrade itself into a modernized international specialized woodworking machinery manufacturing enterprise.

Customized Four Side Moulder Woodworking Machine For Door And Frame Processing
